High Barrier Metal
Security Seal |
|
|
|
 |
|
|
- One piece high security barrier
seal.
-
Unique lock design that is
virtually impossible to open.
-
No tool required for
installation, simply push cable through body to lock.
-
Requires cable cutter to remove.
-
Standard overall length 425 mm
with 4 mm diameter strong aircraft cable.
-
Can be supplied in other desired
cable length.
-
Once locked, any attempt to
separate cable from seal body only serves to strengthen the
connection.
-
Maximum protection against
pilferage, tampering, adulteration, theft.
-
no cut and rejoin
possible.
-
Pull apart force approximate
2000 kg.
-
Materal : Aluminium body with
aircraft cable
-
Seals supplied with engraved
text matter upto 8 character and non-repeat sequential number of 7
digit.
-
To order use part no. CLS-425-4
|
|
|
|
Cable Security Seals
>> |
|
|
-
One piece Aluminium Seal with galvanised
aircraft cable.
-
Locking Key supplied with each seal.
-
Easy to use, just insert cable through
cross drilled hole and tighten Locking Key against cable until key
shears off.
-
Pass through holes as small as 2.0 mm.
with ease.
-
Flexible to secure uneven or bent door
locking mechanisms or where opening are too far apart from other type
of seal.
-
Available in High Tensile Airecraftcable
diametesr 1.6, 2.0, 4.0 & 5.0 mm. to accommodate a wide range of
applications.
|
 |
|
-
Breaking off Locking key makes it
impossible to reapply the seal once removed.
-
Can be supplied with Stainless Steel
Aircraft Cable on specific request.
-
Other lengths of Aircraft Cables can be
provided against specific requirement for larger quantity order.
-
Material : Corrosion resistant Aluminium
body with Galvanised Aircraft Control Cable.
|
|
|
|
|
RECOMMENDED APPLICATIONS
-
CONTAINERS
-
TRUCKs
-
ELECTRIC/WATER METERS
-
TANKER VALVES
-
CURTAIN BUCKLES
-
VEHICLE DOORS
-
WHEEL CHAIRS
-
DISTRIBUTION BOXES,
-
TELECOM.
|
 |
| |
|
 |
 |
|
|
|
|
|
|

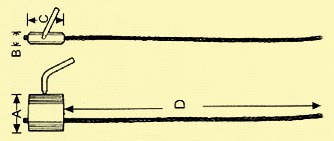

D I M E N S I O N S |
SAFCON
Part No. |
A
(mm.) |
B
(mm.) |
C
(mm.) |
D
(mm.) |
Aircraft
Cable Dia
mm |
Tensile
strength |
| CSS-2-15 |
25 |
9.0 |
25 |
185 |
1.6 |
+250
kgs. |
| CSS-2-20 |
25 |
9.0 |
25 |
185 |
2.0 |
+300
kgs. |
| CSS-3-40 |
41 |
12.5 |
35 |
220 |
4.0 |
+560
kgs. |
| CSS-3-50 |
41 |
12.5 |
35 |
220 |
5.0 |
+750
kgs. |
|
|
|
|
|
|
 |
|
|
|
|
|
CUSTOMISATION |
| STANDARD COLOURS |
NAME/LOGO
(Printed)
|
SERIAL
NUMERING |
| Red,
Yellow, Blue, Green, Orange. Other colours on Quantity orders |
Text matter only
(max 8 digit) |
max 7 digit |
|
Applications
shown are typical, but any of the range of seals from SAFCON may suit your
particular need |
|
|
|
|
|
|
INSTALLATION INSTRUCTIONS |
 |
 |
 |
|
1.
Place
loose end of cable through opening of application to be sealed, Insert end
of cable into pre-drilled hole in seal body and pull to desired loop
length. |
2.
Screw
Locking Key into threaded hole inside of seal body to finally anchor
cable. |
3.
Turn
key until it shears off. Discard the broken key handle piece. |
|
|
|
|
