Star Performer-Low
Cost Container seal |
|
|
|
|
-
Two Piece all plastic non-corrosive
seal.
-
Easy to apply by hand.
-
Easily removed by hand - requires no
tools.
-
High strength security.
-
Clear indication of tampering.
-
Cannot be copied.
-
Prevent counterfeiting
-
Deter theft.
-
Light, tough and corrosion resistant.
-
Large, easy to read numbering provided on both the part
. -
Material : Durable Height grade Engineering Plastic
|
 |
-
Once locked, any attempt to
separate cable from seal body only serves to strengthen the
connection.
-
Maximum protection against
pilferage, tampering, adulteration, theft.
-
no cut and rejoin
possible.
-
Pull apart force approximate
2000 kg.
-
Materal : Aluminium body with
aircraft cable
-
Seals supplied with engraved
text matter upto 8 character and non-repeat sequential number of 7
digit.
-
To order use part no. CLS-425-4
|
|
|
RECOMMENDED APPLICATIONS
-
CONTAINERS,
-
DOORS,
-
TRUCKS,
-
VEHICLE DOORS,
-
WAREHOUSES.
|
 |
| |
|
|
|
|
|
|
SAFCON

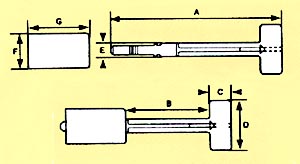

Part No. |
A
mm |
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
| SCS-01 |
99 |
4414 |
14 |
32.75 |
9 |
22.5 |
38 |
|
|
|
|
|
|
CUSTOMISATION |
| STANDARD COLOURS |
NAME/LOGO
(Printed)
|
NAME/LOGO
(High Rise Molded)
|
SERIAL NUMBERING |
BAR CODING |
Red,Yellow,Blue,GreenOrange.
Other colours on Quantity orders |
Min.Qty.10000 Nos. |
Min.Qty.
50000 Nos. |
min.Qty.50000 Nos.
Max 7 digit |
Min.Qty.
100000 Nos.
|
|
|
|
|
|
|
INSTALLATION INSTRUCTIONS |
 |
 |
 |
|
1.Insert locking bar through closed hasp |
2.Position body across locking bar |
3.Press locking bar to body and push to click and secure .To remove break the seal |
|
|
|
|
