Possibolt Barrier
Seals
>> |
|
|
Low Cost carrier
Security Seals |
|
|
-
One piece assembly
-
Easy to apply by simply pushing
metal bolt hasp into plastic body.
-
Combination of plastic body and
metal bolt hasp provides high strength and durability.
-
Available in corrosion resistant
galvanised Steel botl Hasp.
-
The solid bolt hasp must e cut
to remove.
-
The versatility of the posibolt
Seal makes it ideal for many widely differing applications
-
Plastic body
-
Material : Durable, High
Strength Engineering plastic.
|
 |
|
|
RECOMMENDED APPLICATIONS
-
RAIL, ROAD, SHIP, AIR CONTAINERS
-
TRUCKS
-
WAREHOUSES
-
CASH-IN-TRANSIT
-
AND MANY MORE TO YOUR
IMAGINATION
|
 |
|
|
|
|
|
|
 |
|
|
SAFCON

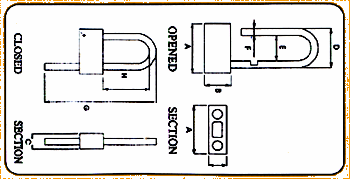

Part No. |
A
mm |
B
mm |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
H
mm |
| PH-01 |
32 |
16 |
11 |
25.5 |
16.5 |
4.5 |
75 |
31 |
| Max. Print Area : 25x12 mm |
|
|
|
|
| CUSTOMISATION |
| STANDARD COLOURS |
NAME/LOGO
(Printed) |
NAME/LOGO
(High Rise Molded) |
SERIAL NUMBERING |
BAR CODING |
| Red, Yellow, Blue, Green, Orange, Other Colours On
Quantity Orders. |
Min.Qty.
10000 Nos.
|
Min.Qty.
50000 Nos.
|
Min. Qty
5000 Nos.
|
Min. Qty
50000 Nos.
|
| Applications shown are typical, but any range of seals
from SAFCON may suit your particular
need |
|
|
|
|
|
|
|
|
 |
|
